Features

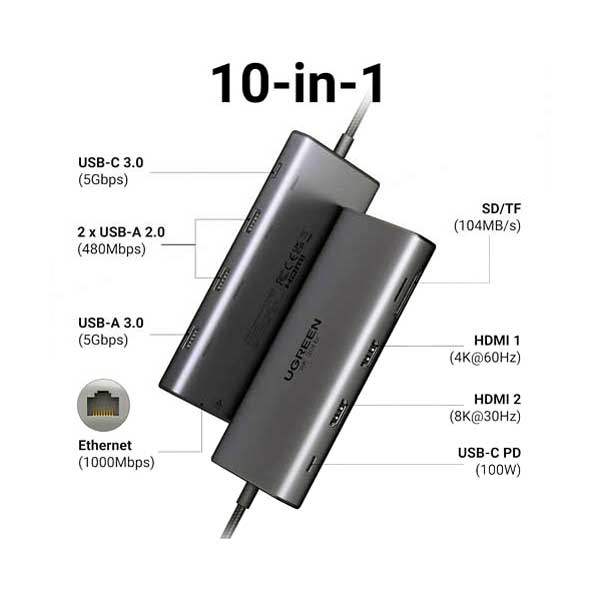

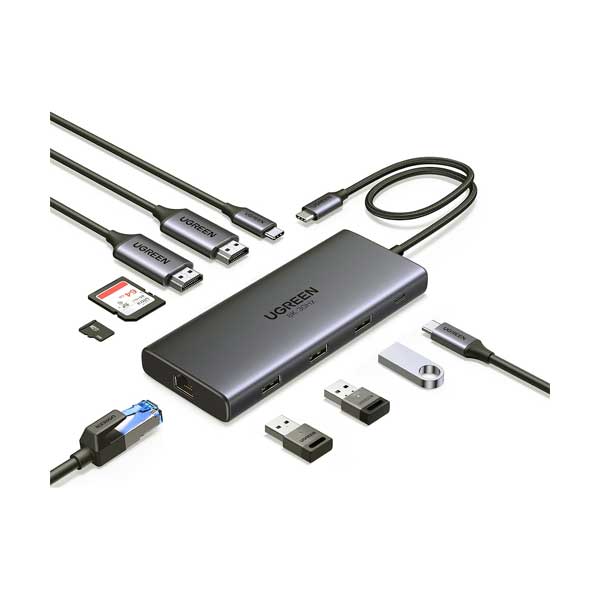

10-in-1 Comprehensive Desktop Expansion: Converts a single USB-C port into two HDMI outputs, one 100W USB-C PD input, one 5Gbps USB-C data port, one 5Gbps USB-A port, two USB-A 2.0 ports, Gigabit RJ45 Ethernet, and SD/microSD card slots.
Dual 4K@60Hz or Single 8K@30Hz Video: Powers dual external monitors up to 4K @ 60Hz simultaneously for cross-screen multitasking, or drives a single Ultra HD 8K @ 30Hz display via HDMI 2 on compatible Windows systems.
100W Power Delivery Pass-Through: Delivers up to 85W of safe, high-speed charging directly to your host laptop while smartly dedicating 15W to power connected USB peripherals and external drives.
5Gbps High-Speed Data Syncing: Transfers large files, HD video footage, and database backups in seconds using dedicated USB-C and USB-A 3.0 ports.
Low-Latency Gigabit Ethernet: Provides stable, hardware-grade wired network access at speeds up to 1000 Mbps, eliminating wireless dead zones and video conference lag.
Simultaneous Dual-Card Access: Reads and writes to full-size SD and microSD (TF) cards concurrently at speeds up to 104 MB/s, streamlining field media offloading for photographers and video editors.
Optimized Peripheral Connectivity: Includes two dedicated USB-A 2.0 ports specifically isolated to eliminate 2.4 GHz wireless mouse and keyboard interference.
Specifications
Host Interface: Integrated USB Type-C Male Cable (Length: ~20 cm / 7.87 in)
Video Output 1 (HDMI 1): Up to 4K @ 60Hz (DP 1.4 host) / 4K @ 30Hz (DP 1.2 host)
Video Output 2 (HDMI 2): Up to 8K @ 30Hz or 4K @ 60Hz (Windows MST mode)
Multi-Monitor Support:
Windows OS: Supports MST (Extend Mode: A-B-C or A-B-B) and Mirror Mode
macOS: Supports SST (Mirror Mode: A-B-B only; external displays show identical content)
Power Delivery (PD): USB-C PD 3.0 port supporting up to 100W input (delivers up to 85W to host device)
USB Data Ports:
1 x USB-C 3.0 (Data only, up to 5 Gbps)
1 x USB-A 3.0 (Data only, up to 5 Gbps)
2 x USB-A 2.0 (Up to 480 Mbps, ideal for wireless dongles, mice, and keyboards)
Networking: 1 x RJ-45 Gigabit LAN (10/100/1000 Mbps auto-sensing)
Card Reader: 1 x SD 3.0 slot, 1 x TF / MicroSD 3.0 slot (supports simultaneous read/write up to 104 MB/s)
Housing Material: Anodized Space Gray Aluminum Alloy
Compatibility: Windows 11/10/8.1/8, macOS, ChromeOS, Linux, iPadOS, iOS, Android (Compatible with Thunderbolt 4/3 and full-featured USB-C laptops)

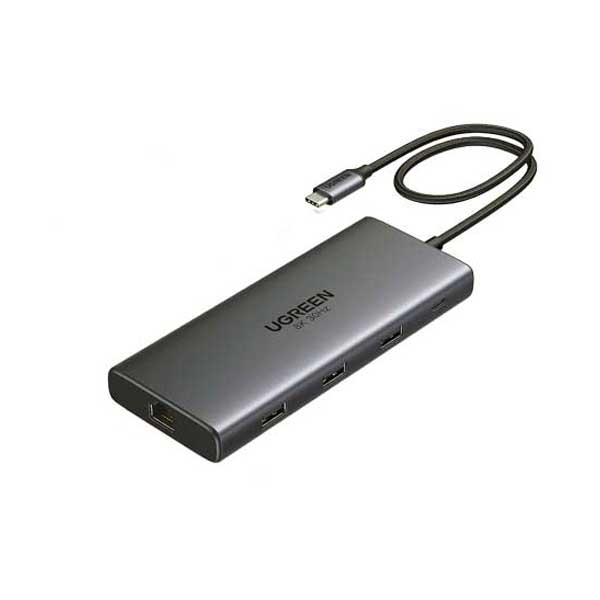

Package Contents: 1x UGREEN Revodok Pro 210 10-in-1 USB-C Hub (UG-15534), 1x User Manual
Dimensions (L x W x H): 4.53" x 1.85" x 0.67"
Shipping Dimensions (L x W x H): 7.68" x 4.33" x 0.98"
Weight: 0.45 lbs
