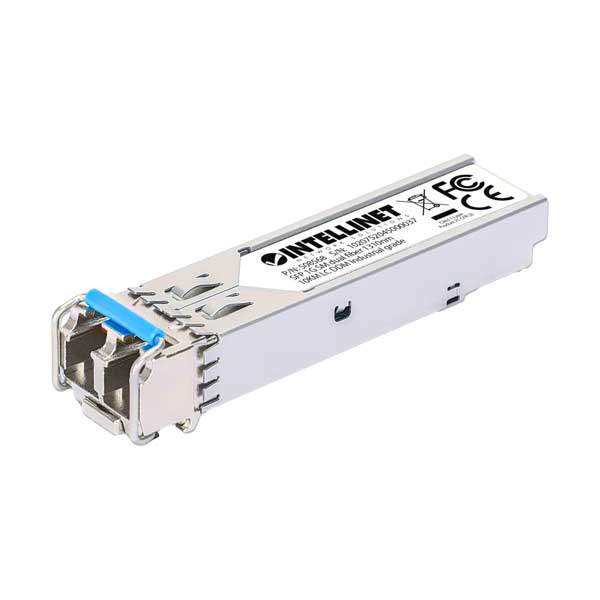

Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module | 1000Base-LX (LC) | Single-Mode | 10km | 508568

The Intellinet Industrial Gigabit Fiber SFP Optical Transceiver Module is engineered for demanding industrial network environments requiring long-distance, reliable Gigabit Ethernet connectivity. This 1000Base-LX transceiver extends data transmission up to 10 km over single-mode fiber with a 1310 nm wavelength, delivering MSA-compliant plug-and-play compatibility with switches from Cisco, Ubiquiti, Mikrotik, TP-Link, and other leading manufacturers.

Built to withstand harsh conditions, the module features a rugged metallic housing that protects against electromagnetic interference and operates continuously across extreme temperatures from -40°C to 85°C. Hot-pluggable design enables zero-downtime installation and maintenance, while integrated Digital Diagnostics Monitoring provides real-time visibility into optical performance, laser bias current, and supply voltage.

Key specifications include an LC duplex fiber connector, 1000 Mbps data rate, 11 dB total power budget, and SFF-8472 DDM/DOM support. The module consumes just 1.0 W maximum power and meets stringent regulatory standards including FCC Class B, CE, RoHS, UKCA, and NDAA compliance. As a functionally equivalent Cisco GLC-LX-SM-RGD replacement, it delivers industrial-grade reliability backed by a 3-Year Manufacturer Warranty.

Features
Universal MSA Interoperability: Engineered to Multi-Source Agreement standards for plug-and-play compatibility with switches and routers from Cisco, Intellinet, ZyXEL, TP-Link, Ubiquiti, Mikrotik, D-Link, Fortinet, and more.
Extended 10 km Reach: Transmits 1000 Mbps data rates up to 10 km (6.2 miles) over single-mode fiber with a 1310 nm optical wavelength.
Industrial Hardened Temperature Rating: Designed to withstand severe operating environments with a rated temperature range of -40°C to 85°C (-40°F to 185°F).
Real-Time DDM / DOM Diagnostics: Supports SFF-8472 digital diagnostics monitoring, providing critical telemetry on optical input/output power, operating temperature, laser bias current, and supply voltage.
Hot-Pluggable Architecture: Install, swap, or upgrade modules without powering down switches or disrupting critical LAN services.
Low-EMI Metallic Enclosure: Full-metal chassis enhances physical durability, accelerates heat dissipation, and shields against high-voltage industrial electromagnetic interference.
Cisco Drop-In Replacement: Functionally equivalent to Cisco part GLC-LX-SM-RGD, reducing deployment costs without sacrificing reliability.
Full Regulatory Compliance: Fully compliant with NDAA guidelines, TAA requirements, CE, FCC Class B, UKCA, and RoHS standards.

Specifications
Standard: IEEE 802.3z (Fiber Optic Gigabit Ethernet)
Data Transfer Rate: 1000 Mbps
Media Support: 1000Base-LX single-mode 9/125 µm fiber
Connector Type: Fiber LC duplex port
Optical Wavelength: 1310 nm
Maximum Distance: 10 km (6.2 mi.)
Optical Power Budget:
Maximum TX Power: -3 dB
Minimum TX Power: -9 dB
Receiver Sensitivity: -20 dB
Total Power Budget: 11 dB
Diagnostic Monitoring Interface: SFF-8472 (DDM/DOM)
Form Factor: SFP (Small Form Factor Pluggable / mini-GBIC)
Power Requirements: 3.3 V DC
Power Consumption: 1.0 W (Maximum)
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 5% to 95% RH (Non-condensing)
Certifications: FCC Class B, CE, RoHS, UKCA, NDAA
Warranty: 3-Year Manufacturer Warranty
Dimensions (L x W x H) (inches): 2.24 x 0.55 x 0.5 in. (57 x 14 x 12 mm)
Weight (lbs): 0.12 lbs
