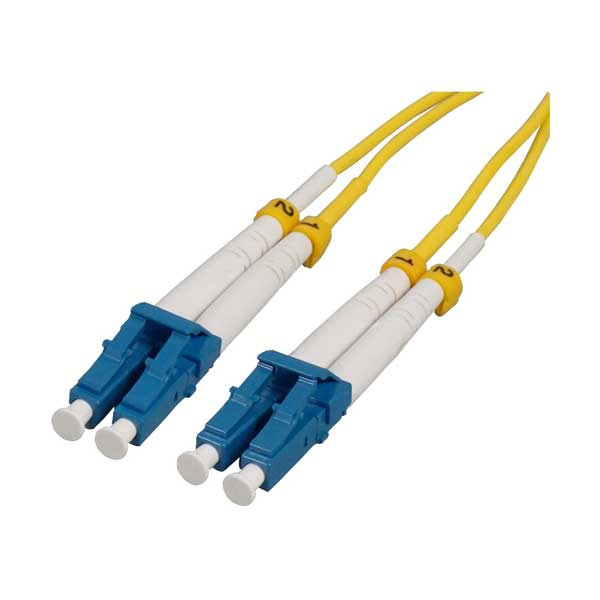

Intellinet 3m 2.0mm Duplex OFNR Singlemode BIF LC to LC UPC Fiber Optic Patch Cable - Yellow (751674)

The Intellinet 3m 2.0mm Duplex OFNR Singlemode BIF LC to LC UPC Fiber Optic Patch Cable in yellow is designed for flexible connectivity in interconnect and cross-connect setups across data centers, telecom rooms, entrance facilities, and workstations. Equipped with UPC (Ultra Physical Contact) connectors, it delivers enhanced surface finish and reduced return loss. Utilizing OS2 single mode fiber, this cable ensures high performance and durability suitable for high-speed networks, including 40G Ethernet and beyond. Its bend-insensitive construction minimizes attenuation during bends or twists, improving installation ease. Crafted from Corning ultra-pure glass fiber, it offers low attenuation and high bandwidth, backed by a comprehensive test report and lifetime warranty.

Features
Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
OS2 Single Mode Fiber: Uses OS2 single mode fiber, providing superior performance and longevity for high-speed network connections.
Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
Each cable ships with the test report included
Lifetime Warranty

Specifications
Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Fiber grade: G.657.A1 (Compatible with G.652.D)
Bend Radius: 10.0mm
Fiber mode: Single Mode OS2 9/125μm
Wavelength: 1310/1550nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: ≤0.3dB (1310nm/1550nm), typical ≤0.2dB
Return loss: ≥55dB (1310nm/1550nm)
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.25dB/km
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -40°C +85°C
