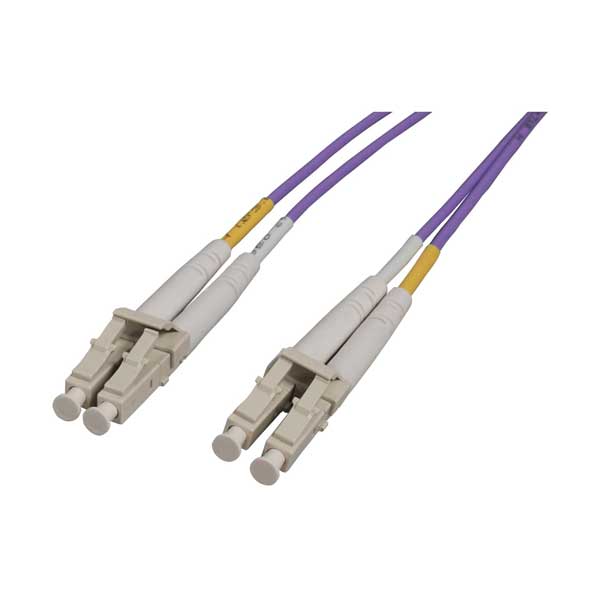

Intellinet 1m 2.0mm Duplex OFNR OM4 Multimode LC to LC UPC Fiber Optic Patch Cable - Violet (752169)

The Intellinet 1m 2.0mm Duplex OFNR OM4 Multimode LC to LC UPC Fiber Optic Patch Cable in violet is engineered for high-speed data transmission up to 40G Ethernet. Its bend-insensitive design minimizes signal degradation from cable flexing. Featuring Ultra Physical Contact (UPC) connectors with ceramic ferrules, it ensures low return loss and consistent network reliability. Constructed from ultra-pure Corning fiber, this cable comes with certified testing to guarantee performance. Rated for riser use, it suits demanding environments like data centers, with a durable design supporting over 1000 connector cycles and operating temperatures from -20°C to 75°C.

Features
Bend-insensitive: Reduces signal loss when the cable is bent or twisted.
High performance: Delivers superior bandwidth for high-speed data transmission, suitable for 40G Ethernet and beyond.
Ultra Physical Contact (UPC) connectors: Provides an improved surface finish and return loss for a more reliable network connection.
Premium materials: Made from ultra-pure Corning optical fiber.
Certified and tested: Each cable is shipped with a test report to ensure quality and performance.
Versatile application: Ideal for interconnect and cross-connect applications in a variety of environments, including data centers and telecommunications rooms.

Specifications
Connector Type: LC UPC Duplex to LC UPC Duplex.
Fiber Mode: Multi Mode OM4.
Fiber Core/Cladding: 50/125µm.
Cable Outer Diameter (OD): 2.0mm.
Fiber Count: 2 fibers.
Cable Jacket: Riser (OFNR) rated.
Color: Violet.
Ferrule Material: Ceramic (zirconia).
Attenuation @ 850/1300 nm (dB/km): ≤ 3.2 / ≤ 0.8.
Insertion Loss: Typical ≤0.2dB.
Return Loss: ≥20dB.
Wavelength: 850/1310nm.
Polarity: A (Tx) to B (Rx).
Bend Radius: 45mm.
Connector Durability: 1000 insertion-extraction cycles min.
Operating Temperature Range: -20°C to +75°C.
