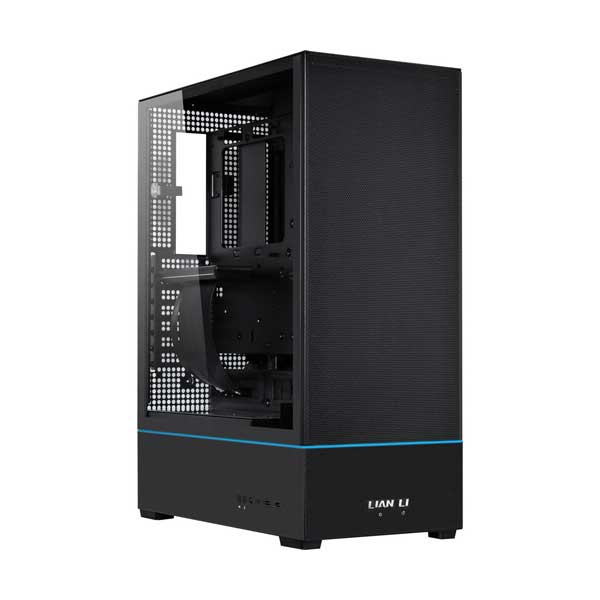

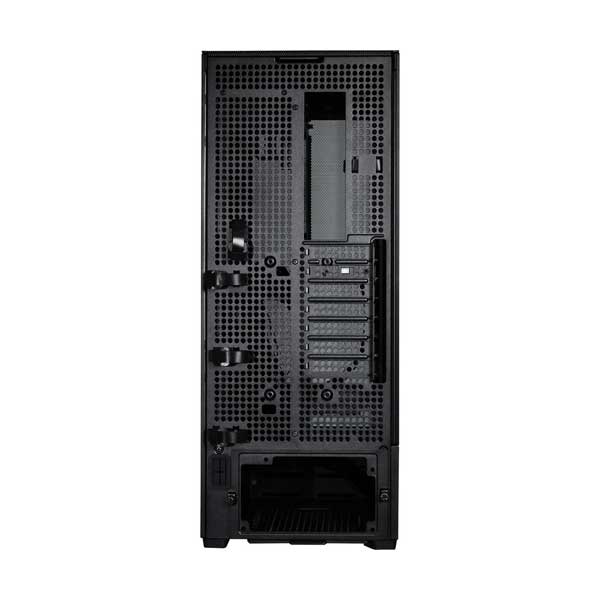

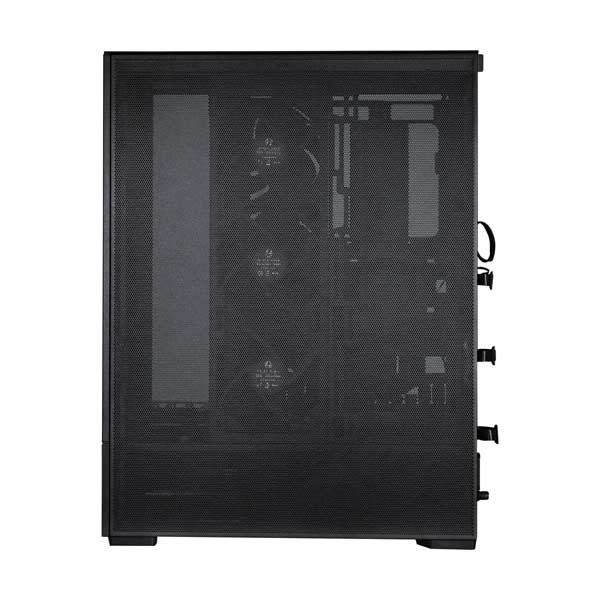

Lian Li Stand-Up Platform Mid-Tower ATX Case - Black (SUP01X)

The Lian Li SUP01X is a mid-tower ATX case featuring a distinctive vertical "Stand-Up Platform" design that minimizes desktop space. It supports ATX, M-ATX, and ITX motherboards, accommodating GPUs up to 400mm and CPU coolers up to 88.2mm in height. Equipped with a 510mm PCIe 4.0 riser cable, it enables front-facing GPU installation for improved cooling and aesthetics. The case employs a triple-chamber layout with dedicated airflow for CPU, GPU, and motherboard, enhanced by three pre-installed 120mm PWM fans and additional fan mounts. Dual ARGB lighting strips and tempered glass side panel highlight the internal components, while mesh panels and magnetic dust filters optimize airflow and maintenance. Thoughtful cable management and tool-less features simplify assembly, making the SUP01X ideal for enthusiasts seeking compact, efficient, and visually striking builds.

Features:
Innovative "Stand-Up Platform" vertical design for minimal desktop footprint.
Front-facing GPU installation with included 510mm PCIe 4.0 riser cable.
Triple-chamber independent direct cooling for CPU, GPU, and motherboard components.
Pre-installed 3x 120mm PWM fans for GPU exhaust.
Exterior 120mm fan mounting bracket at the rear for fresh air intake to motherboard.
Supports 360mm/280mm AIO radiators.
Dual ARGB lighting strips with 6 customizable lighting modes.
Optimized airflow with mesh panels on front, side, and top.
User-friendly cable management with integrated clips and straps.
Supports ATX, M-ATX, and ITX motherboards, including ATX Back Connect.
Flexible storage options for up to 4x 2.5" SSDs or 2x 3.5" HDDs.
Max GPU length clearance: 400mm.
Max CPU cooler height clearance: 88.2mm (for AIO pump).
Built-in power and reset buttons (Lian Li logo on front acts as power/reset).
Includes magnetic dust filters (top, front) and a tray filter (bottom).

Specifications:
Case Type: Small Tower Case
Dimensions (D x W x H):
With feet: 403.45mm x 212mm x 534mm
Without feet: 403.45mm x 212mm x 524mm
Capacity: 44.8L
Material: Steel, 4.0mm Tempered Glass
Motherboard Support: ATX / M-ATX / ITX, ATX Back Connect
PSU Support: ATX (Max 220mm length)
Included Fans: 3 x 120mm PWM (pre-installed, non-LED, for GPU exhaust)
Fan Support:
Side 1 (GPU exhaust): 3 x 120mm
Side 2 (Radiator/Intake): 3 x 120mm or 2 x 140mm
Rear exterior (Motherboard intake): 1 x 120mm
Radiator Support: Side 2: 360mm or 280mm
Drive Support:
Drive Cage: 2 x 2.5” SSD or 2 x 3.5” HDD
Above PSU shroud: 2 x 2.5” SSD
GPU Length Clearance: Max 400mm
CPU Height Clearance: Max 88.2mm (for AIO pump)
Expansion Slots: 7 (for low-profile cards) / 4 (for standard-profile cards with extension cable - this implies the main GPU slot uses 4 slots vertically through the riser, and 7 low-profile slots are available otherwise)
I/O Ports:
1 x Power Button (Lian Li logo)
1 x Reset Button (Lian Li logo)
2 x USB 3.0 Type-A
1 x USB 3.1 Type-C (or USB 3.2 Gen 1 Type-C)
1 x 3.5mm Audio (Mic/Headphone combo jack)
1 x Light Color Button (C)
1 x Light Mode Button (M)
Dust Filters: 1 x bottom tray, 1 x front magnetic, 1 x top magnetic
Riser Cable Type: PCIe 4.0 (510mm length, included)
Windowed Panel: Yes (Tempered Glass)
Built-in Lighting: Yes (Dual ARGB strips)
Tool-Less Design: Yes (Screw-less drive bays, thumbscrews)
Cable Management Space: Yes
Weight: 24.47 lbs / 11.1 kg
Shipping Weight: Approximately 29.20 lbs
UPC Code: 840353046320
