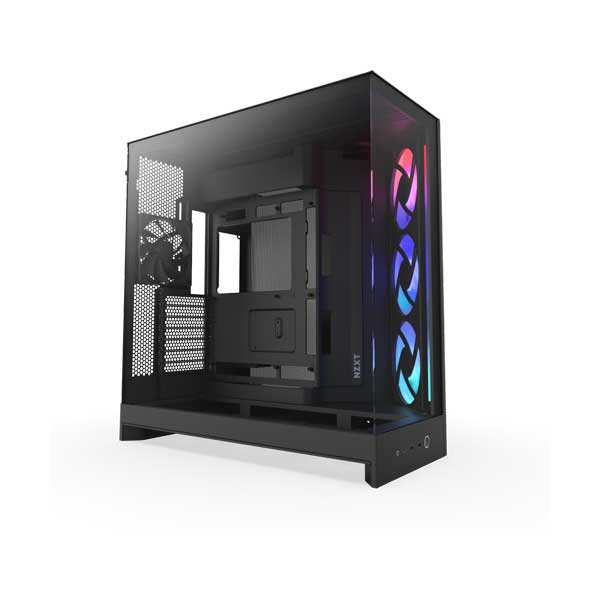

NZXT H9 Flow RGB Dual-Chamber Mid-Tower ATX Case - Black (CM-H92FB-R1)

The NZXT H9 Flow RGB (CM-H92FB-R1) is a dual-chamber mid-tower ATX case engineered for high-end builds emphasizing superior airflow and visual impact. Its dual-chamber design isolates the power supply and storage from core components, enhancing thermal efficiency and simplifying cable management. The case features wraparound tinted tempered glass panels for a full interior view and perforated steel panels to optimize cooling. Supporting up to ten fans and large radiators up to 420mm, it ensures robust thermal performance. Pre-installed RGB Core fans, extensive component clearance, and modern front I/O options, including USB 3.2 Gen 2x2 Type-C, round out this well-balanced case for advanced PC builders.

Features
Dual-Chamber Design: Separates the primary components (motherboard, GPU) from the power supply and storage for improved airflow and easier cable management.
Panoramic Glass Panels: Features wraparound, tinted tempered glass on the front and side to showcase internal components.
High-Airflow Mesh Panels: Ultra-fine mesh panels on the top and side maximize airflow while also filtering dust.
Expansive Cooling Support: Accommodates a total of up to 10 fans, and supports large radiators up to 420mm on both the top and front-right.
Back-Connect Ready: Full compatibility with ASUS BTF and MSI Project Zero motherboards for a tidier, cable-free build aesthetic.
Optimized Cable Management: Includes extra-wide channels, Velcro straps, and tie-down points behind the motherboard tray to simplify cable routing.
Pre-Installed Fans: Comes with RGB Core fans pre-installed, typically including three F140 RGB Core fans and one F120Q fan.
Extensive Component Clearance: Offers generous clearance for GPUs up to 459mm long (depending on fan configuration) and CPU coolers up to 165mm tall.
Modern Front I/O: Features multiple front panel ports, including USB 3.2 Gen 2x2 Type-C.

Specifications
Case Type: Mid-Tower
Motherboard Support: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 277mm)
Case Material: SGCC Steel, Tinted Tempered Glass
Drive Bays:
2.5" Drive Bays: 4 (some retailers list 6 total)
3.5" Drive Bays: 2
Expansion Slots: 7
Fan Support:
Side: 3 x 120mm or 3 x 140mm
Top: 3 x 120mm or 3 x 140mm
Bottom: 3 x 120mm or 3 x 140mm
Rear: 1 x 120mm
Radiator Support:
Side: Up to 420mm with specific configurations
Top: Up to 420mm
Bottom: Up to 360mm
Rear: Up to 120mm
Dimensions (H x W x D): 506 x 315 x 481 mm (19.9 x 12.4 x 18.9 inches)
CPU Cooler Clearance: Up to 165mm
GPU Clearance: Up to 459mm (with fans installed at the front-right)
PSU Clearance: Up to 200mm
Front I/O Ports: 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C, 1 x Headphone/Microphone Jack
Weight: 27.78 lbs
