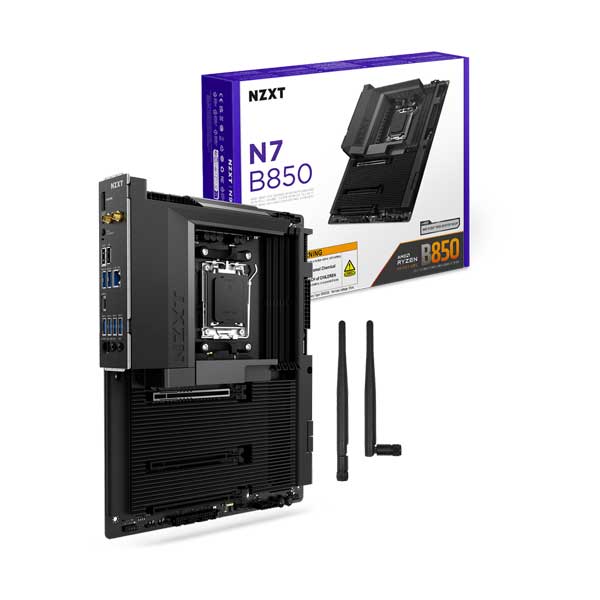

NZXT N7 B850 AMD B850 ATX Gaming Wi-Fi Motherboard with Full Cove - Black (N7-B85XT-B1)

The NZXT N7 B85XT-B1 is a premium ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors with an AM5 socket. It showcases a sleek, minimalist look thanks to a full PCB cover and integrates RGB lighting and fan controls managed through NZXT CAM software. Supporting high-performance DDR5 memory up to 256GB at speeds exceeding 8000 MT/s (OC), it delivers stable power with a 16+2+1 phase design featuring 80A DrMOS. Connectivity includes PCIe 5.0, Wi-Fi 6E, and 2.5GbE LAN, while storage options offer three M.2 slots (one PCIe 5.0, two PCIe 4.0) plus four SATA ports. Tool-less M.2 latches simplify SSD installation, and expansion slots include one PCIe 5.0 x16 for next-gen GPUs.

Features
Minimalist Design: A full PCB cover creates a clean and modern aesthetic, concealing components for a streamlined look.
Optimized Power Delivery: Features a 16+2+1 power phase design with 80A DrMOS to provide stable and efficient power to the CPU.
Integrated Control: Built-in fan and lighting controls are fully integrated with NZXT CAM software, allowing for easy management and synchronization.
High-Speed Connectivity: Includes built-in Wi-Fi 6E and 2.5GbE LAN for low-latency, high-bandwidth networking.
Quick-Release Latches: M.2 slots feature toolless, quick-release latches for easy SSD installation and removal.
PCIe 5.0 Expansion: A dedicated PCIe 5.0 x16 slot supports the latest high-speed graphics cards.
Extensive Storage Support: Provides three M.2 slots (one PCIe 5.0 and two PCIe 4.0) for ultra-fast storage, along with four SATA ports.

Specifications
Form Factor: ATX
CPU Socket: AMD AM5
Chipset: AMD B850
Memory: 4x DDR5 DIMM slots, Dual-Channel, supports up to 256GB and speeds up to 8000+ MT/s (OC).
Wireless: Wi-Fi 6E (2x2) and Bluetooth v5.2.
LAN: Realtek 2.5G LAN.
Audio: Realtek ALC1220 Codec.
Expansion Slots:
1x PCIe 5.0 x16 slot
2x PCIe 4.0 x16 slots (run in x2 mode)
M.2 Slots:
1x PCIe 5.0 x4
2x PCIe 4.0 x4
USB Rear I/O:
1x USB 3.2 Gen 2 Type-C
2x USB 3.2 Gen 2 Type-A
4x USB 3.2 Gen 1 Type-A
2x USB 2.0
Integrated RGB/Fan Control: 2x NZXT RGB + PWM headers, 1x NZXT RGB header, 2x 5V ARGB headers.
Weight: 4.87 lbs
