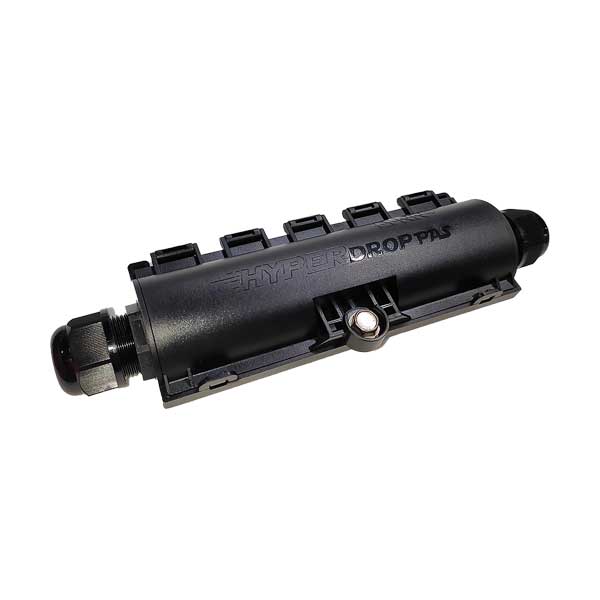

Lynn ProductsLYNN HyperDrop PAS Patch and Splice Fiber Terminal Enclosure (HDPAS-M-FTTX)
SMU - SC - Altex Computers & Electronics
$10.56
$10.56

Overview

Description

The TechLogix SMU-SC Single Mode (OS1, OS2) 9/125µm UPC Click-On ECOConnector is a blue connector designed for advanced fiber networks. The UPC polish is standard and compatible with several cable sizes, allowing for flexibility and customization in your network.

Specifications

Manufacturer: TechLogix Networx

Product: ECO Series™ Field-Installable Fiber Optic Connector

Model: SMU-SC

Fiber Mode: Single Mode (OS1/OS2, 9/125µm)

Connector Type: SC Simplex

Polish Type: UPC (Ultra Physical Contact)

Insertion Loss: <0.5dB (0.3dB typical)

Return Loss: ≥50dB

Cable Compatibility: 250µm, 900µm, 2.0mm, 3.0mm (Distribution or Zip-Cord)

Features: Field Installable (No epoxy/polish/crimp needed), Pre-polished, Re-usable (≤5 times), Built-in verification window

Housing Color: Blue
