Features

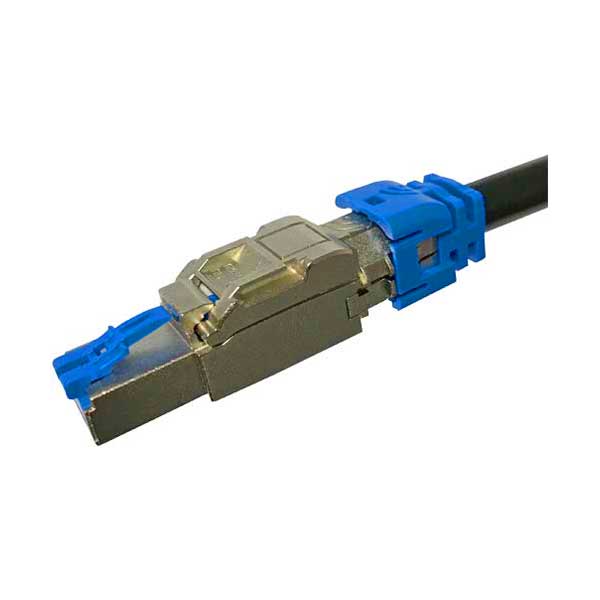

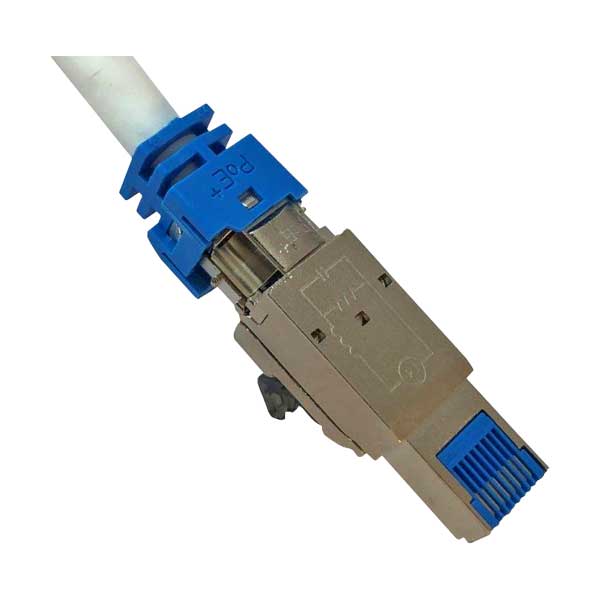

Crimp-Tool-Free Termination: Field-installable design enables fast, repeatable wire termination without specialized RJ45 crimpers.
Cast-Metal Shielding: Full metal enclosure with internal ground provides end-to-end protection against EMI, RFI, and alien crosstalk.
HDBaseT PoE+ Ready: Optimized to deliver continuous power and high-speed data transmission to PoE+ network devices.
Broad Category Support: Accommodates high-bandwidth Cat7, Cat6A, and Cat6 installations.
Enhanced Conductor Grip: Integrated wire alignment tray supports both solid and stranded large-gauge conductors.
Corrosion-Resistant Contacts: 50-micron gold-plated contacts ensure consistent conductivity and extended operational life.
Dual Wiring Standards: Built-in wire map tray supports T568A and T568B color configurations for quick alignment.
Specifications
Connector Type: RJ45 (8P8C)
Performance Standards: Cat7, Cat6A, Cat6 (10-Gigabit rated)
Protocol & Power Support: IEEE 802.3an (10GBit), HDBaseT PoE+
Cable Shielding Compatibility: S/FTP and F/FTP shielded cabling with internal grounding
Conductor Wire Gauge: 26 AWG to 23 AWG (Solid or Stranded copper)
Conductor Insulation Diameter: 0.032 in to 0.057 in (0.80 mm to 1.47 mm)
Cable Outer Diameter (OD): 0.236 in to 0.315 in (6.0 mm to 8.0 mm)
Contact Plating: 50-micron gold plating
Compliance: ANSI/TIA-568-C.2, ANSI/TIA-568.2-D, ISO/IEC 11801, UL, RoHS, Prop 65
Packaging: 1 piece per bag
Dimensions (L x W x H): 2.76 in x 0.70 in x 0.55 in
