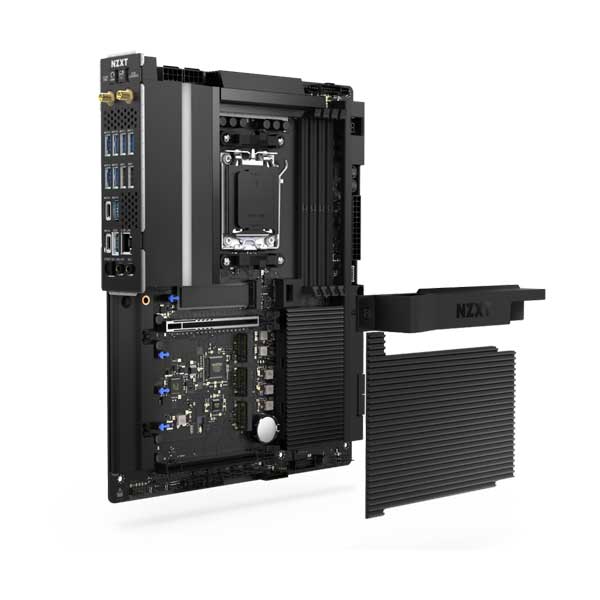

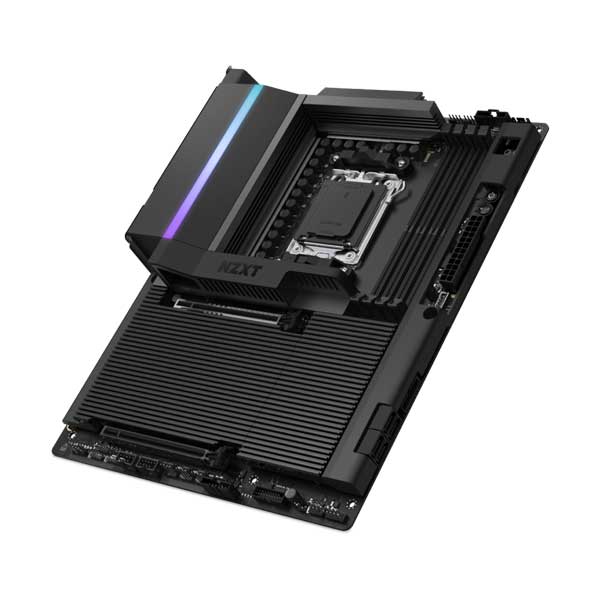

NZXT AMD X870E ATX Gaming Wi-Fi 7 Motherboard with Full Cover (N9-X87XT-B1)

The NZXT AMD X870E ATX Gaming Wi-Fi 7 Motherboard (N9-X87XT-B1) supports AMD Ryzen™ 7000, 8000, and 9000 series processors via the AM5 socket. Its robust 20+2+1 power phase design with 110A SPS and an 8-layer, low-loss 2-oz copper PCB ensures stable performance and excellent overclocking. Advanced cooling includes a VRM heatsink array with thermal pads, dual PWM fans, and dedicated M.2 slot heatsinks. It offers PCIe 5.0 x16 and PCIe 3.0 x16 slots, four DDR5 DIMM slots supporting speeds over 8000 MT/s, and four M.2 slots with quick-release latches. Connectivity features USB 4 (40 Gbps), Wi-Fi 7, and 5GbE. The full-metal cover with customizable RGB lighting provides a sleek, modern look ideal for high-performance AMD gaming builds.

Features:
AMD AM5 Socket: Ready for AMD Ryzen™ 9000, 8000, and 7000 series desktop processors.
Superior Power: A robust 20+2+1 power phase design with 110A SPS and an 8-layer, low-loss 2-oz copper PCB ensure exceptional stability and overclocking potential.
Advanced Cooling: Stay cool under pressure with a VRM heatsink array with thermal pads, dual PWM fans, and fins, plus dedicated heatsinks and thermal pads for all M.2 slots.
PCIe 5.0 Expansion: One PCIe 5.0 x16 slot for next-gen GPUs and one PCIe 3.0 x16 slot for additional high-speed expansion cards.
DDR5 Memory: Four dual-channel DIMM slots support DDR5 RAM speeds of 8000+ MT/s, delivering faster multitasking and improved system responsiveness.
High-Speed Storage: Four M.2 slots, including one PCIe 5.0 and three PCIe 4.0, deliver ultra-fast storage speeds and load times—all with quick-release latches.
Next-Gen Connectivity: USB 4 (40 Gbps), Wi-Fi 7, and 5GbE deliver blazing-fast data transfers and ultra-low latency networking.
Sleek & Stylish: A premium full-metal cover conceals the PCB for a clean, modern aesthetic, enhanced by onboard customizable RGB lighting.

Specifications:
CPU Support: AMD Ryzen 9000, 8000, and 7000 series processors.
Socket: AM5.
Chipset: AMD X870E.
Form Factor: ATX.
Memory:
Slots: 4 x DDR5 DIMM.
Memory Type: DDR5.
Architecture: Dual-channel.
Supported Speeds: 8000+ MT/s.
Expansion Slots:
PCIe 5.0: 1 x PCIe 5.0 x16.
PCIe 3.0: 1 x PCIe 3.0 x16.
M.2 (Wi-Fi): 1 x M.2 Socket (Key E).
Storage:
M.2 (PCIe 5.0): 1 x M.2_1 (PCIe 5.0 x4 mode).
M.2 (PCIe 4.0): 3 x M.2_2, M.2_3, M.2_4 (PCIe 4.0 x4 mode).
SATA: 4 x SATA 6Gb/s ports.
Networking:
LAN: Realtek 5.0G LAN.
Wi-Fi: Tri-Band Wi-Fi 7.
Bluetooth: v5.4.
Audio: Realtek ALC4082 Audio Codec.

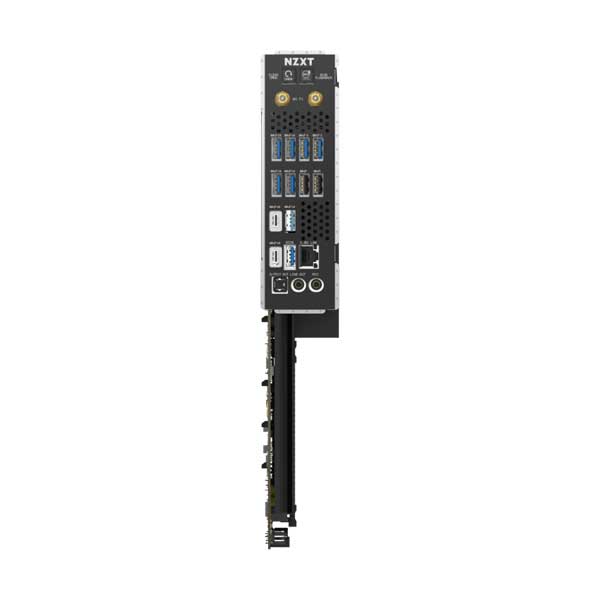

I/O (Rear Panel): USB 4, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0, LAN, Audio jacks, Optical S/PDIF out.
Internal I/O: 24-pin ATX power connector, 8-pin ATX 12V power connector, 4-pin CPU_FAN connector, 4-pin AIO_PUMP connector, 4-pin SYS_FAN connectors, NZXT RGB LED connector, 5V ARGB LED connectors, NZXT 8-pin PWM connectors, USB 2.0 header, USB 3.2 Gen1 header, USB 3.2 Gen2x2 front panel header, Front panel audio connector.
Power Phase Design: 20+2+1 power phase design.
VRM Cooling: VRM heatsink array with thermal pads, dual PWM fans.
M.2 Cooling: 4 dedicated M.2 heatsinks.
Full-Metal Cover: Yes.
Quick-Release Latches: Yes (for M.2).
Operating System Support: Windows 11/10 64-bit.
