Description
- Fully Shielded One Piece Construction
- Toolless – No special tools needed.
- Improved Load Bar for faster & easier wire pattern termination
- Wiring Label: TIA 568 A/B Patterns
- Standards Compliance: ANSI/TIA 568.2-D; ISO/IEC 11801 Class Fa, Ea, E; TIA 1096-A
- All Shielded Category Cable Constructions Supported for Cat7a, Cat7, Cat6a, and Cat6
- Ideal for Large Diameter Cables and Conductors
- Supports 22-26 AWG Solid Wire/23-27 AWG Stranded Wire
- Overall Cable Diameters: 6.0mm to 9.0mm
- Reusable Termination Capability: Up to 5 Times
- PoE IEEE 802.3bt
- Protection Category: IP 20

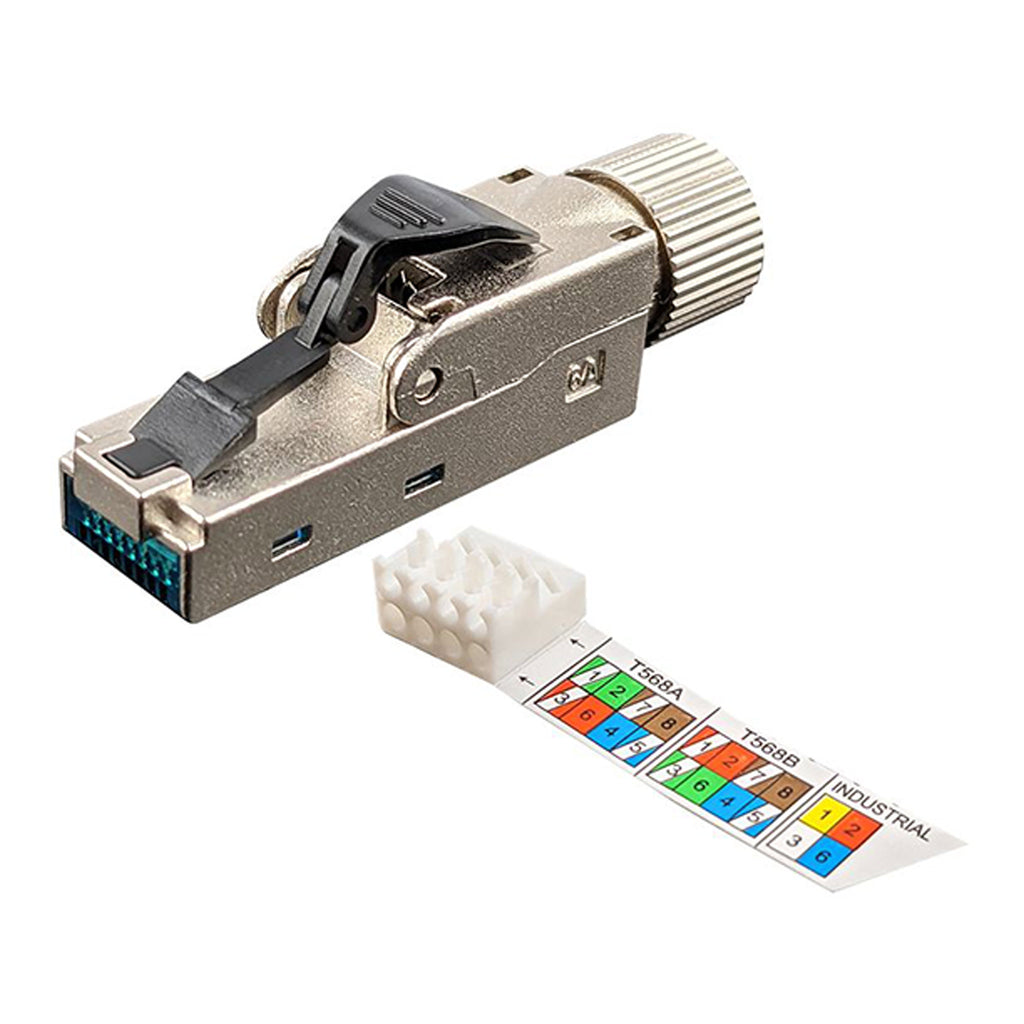

Simply45 S45-1710S 10G Rated RJ45 Toolless Shielded RJ45 Field Plug for Cat6/6a/7a Shielded LAN cables, - 1ea/Bag
Our S45-1710S RJ45 Field Plug is a toolless 1-piece design field plug providing outstanding performance, reliability, and ease of use for today’s 10GBaseT networking applications. The S45-1710S supports Cat7a/7/6a/6 shielded cables with 22-26 AWG conductor diameters.
Our S45-1710S RJ45 Field Plug is a toolless 1-piece design field plug providing outstanding performance, reliability, and ease of use for today’s 10GBaseT networking applications. The S45-1710S supports Cat7a/7/6a/6 shielded cables with 22-26 AWG conductor diameters.
- Ultra Slim Design - Supports Side-by-Side Installation in High Density Patch Panels and Device Sockets.
- Improved Wiring Layout - Easier and Faster Terminations
- Built-In Strain Relief – Easier to Use and Supports Shallower Depth Installations
- PoE/PoH Support for IEEE 802.3bt
