Description
- 1U Rack Server
- Intel Xeon E-2314 2.8GHz 4-Core Processor
- 16GB DDR4 SDRAM
- Supports up to 128GB of Memory
- Enhanced iLO 5 Security Features
- HPE InfoSight Cloud-Based Analytics Tool
- 500W Power Supply
- 1-Year Manufacturer Limited Warranty

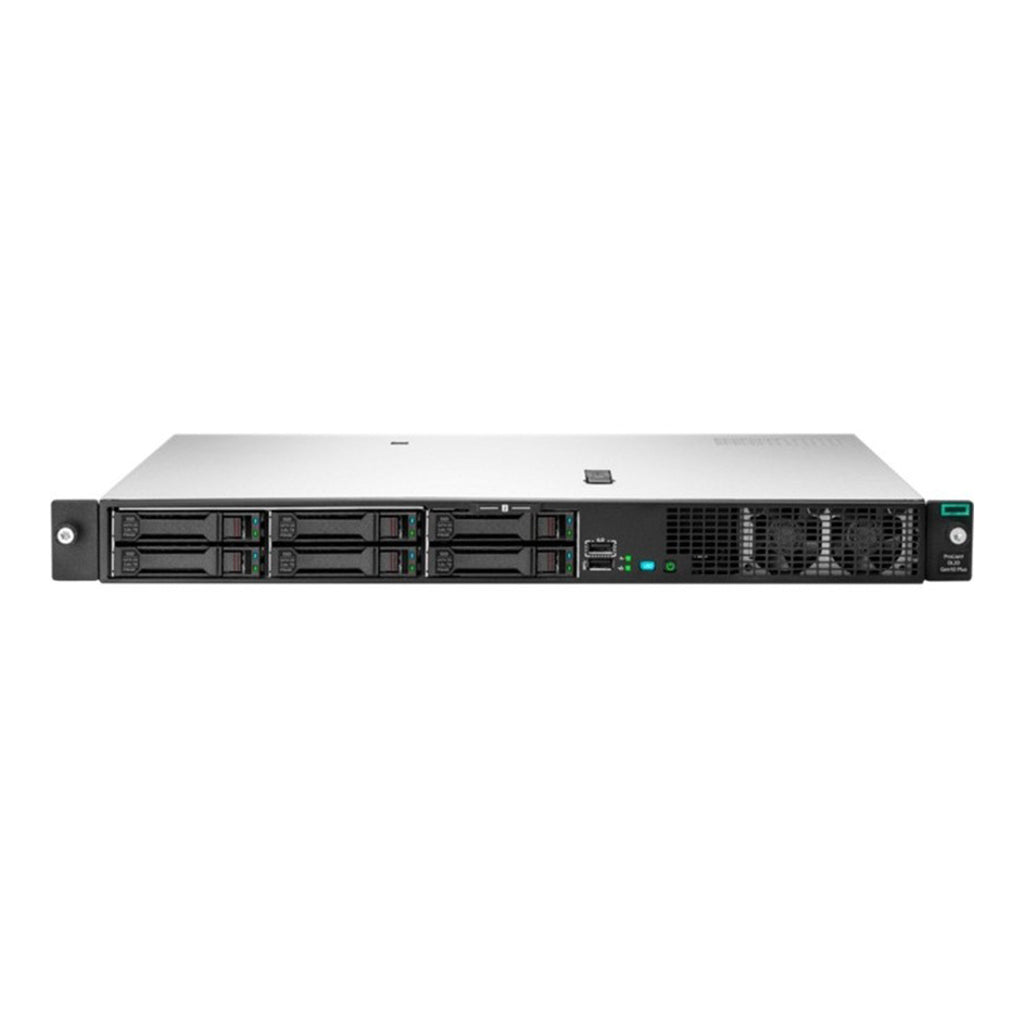

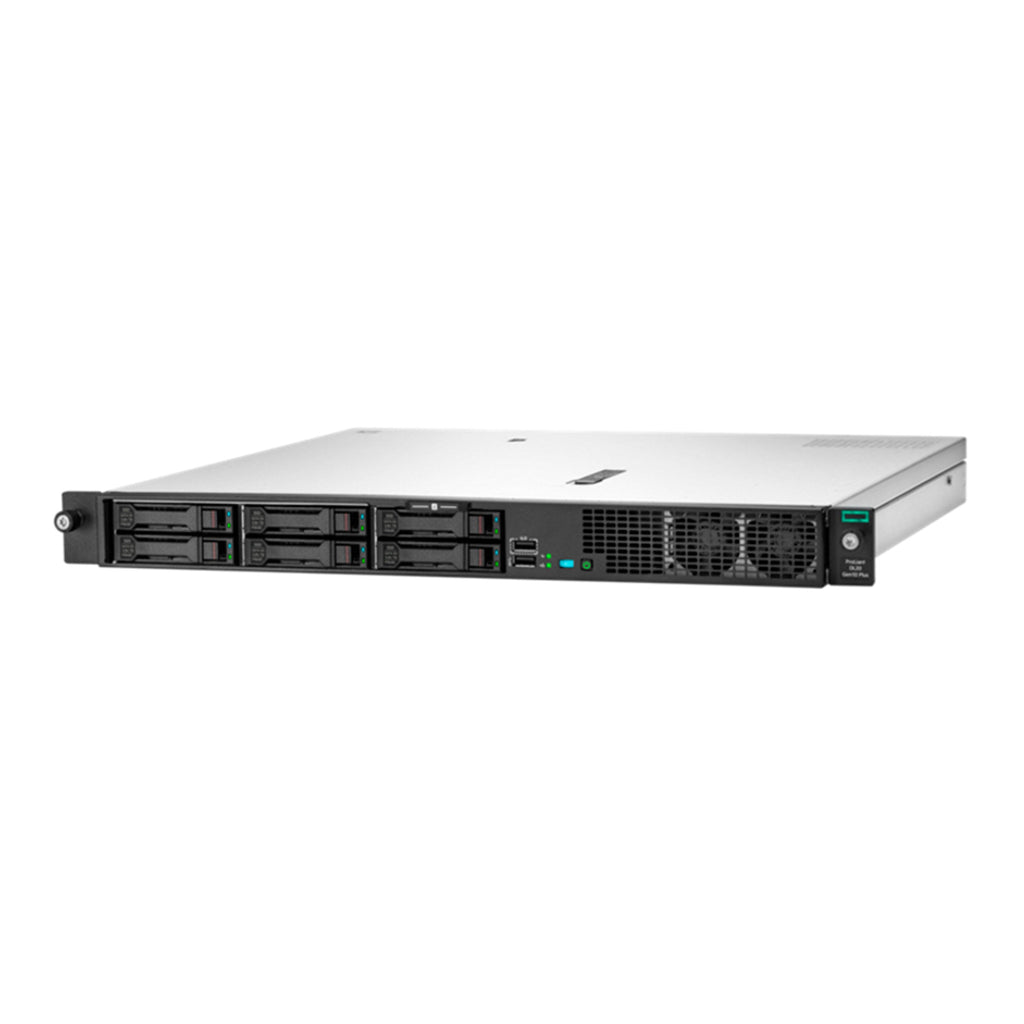

HPE P44114-B21 ProLiant DL20 G10 Plus 1U Rack Server - 1 x Intel Xeon E-2314 2.80 GHz - 16 GB RAM - Serial ATA Controller
The HPE P44114-B21 ProLiant DL20 G10 Plus is a 1U rack server designed for small to medium-sized businesses. It features a single Intel Xeon E-2314 processor running at 2.80 GHz and 16 GB of RAM.
The server comes equipped with a Serial ATA controller, which is used to connect and manage SATA hard drives. It also includes several other features such as four hot-swappable drive bays, dual Gigabit Ethernet ports, and an integrated iLO (Integrated Lights Out) remote management interface.
Overall, the HPE P44114-B21 ProLiant DL20 G10 Plus is a reliable and efficient server that is well-suited for a variety of business applications. Its compact form factor makes it ideal for organizations with limited rack space, while its powerful hardware specifications allow it to handle demanding workloads with ease.
- Processor
- Number of Processors Supported: 1
- Number of Processors Installed: 1
- Processor Manufacturer: Intel
- Processor Type: Xeon
- Processor Model: E-2314
- Processor Core: Quad-core (4 Core)
- Processor Speed: 2.80 GHz
- Cache: 8 MB
- Chipset
- Chipset Manufacturer: Intel
- Chipset Model: C256
- Memory
- Standard Memory: 16 GB
- Maximum Memory Supported: 128 GB
- Memory Technology: DDR4 SDRAM
- Error Checking: ECC
- Number of Total Memory Slots: 4
- Number of Occupied Memory Slots: 1
- Signal Processing: Unregistered (Unbuffered)
- Storage
- Number of Hard Drives: No
- Optical Drive Type: No
- Controllers
- Controller Type: Serial ATA
- Controller Model: Intel VROC
- I/O Expansions
- Number of Total Expansion Bays: 5
- Number of External 5.25" Bays: 1
- Number of Internal 2.5" Bays: 4
- Number of SFF Bays: 4
- Hot Swappable Bays: Yes
- Number of Total Expansion Slots: 2
- PCI Express Details: 2 PCIe 4.0 slots
- Display & Graphics
- Graphics Controller Manufacturer: Matrox
- Graphics Controller Model: G200
- Graphics Memory Capacity: 16 MB
- Network & Communication
- Ethernet Technology: Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports: 5
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 2
- VGA: Yes
- Number of VGA Ports: 1
- Remote Management: Yes
- Remote Management Controller: iLO Management (standard), Intelligent Provisioning (standard)
- Operating System
- Operating System Supported: SUSE Linux Enterprise Server 12 SP5
- Operating System Supported: SUSE Linux Enterprise Server 15 SP3
- Operating System Supported: Windows Server 2019 Essentials
- Operating System Supported: Windows Server 2022
- Operating System Supported: Windows Server 2022 Datacenter
- Operating System Supported: Windows Server 2022 Essentials
- Operating System Supported: Windows Server 2022 Standard
- Operating System Supported: Hyper-V
- Operating System Supported: Red Hat Enterprise Linux 8.4
- Operating System Supported: SUSE Linux Enterprise Server 12
- Operating System Supported: SuSE Linux Enterprise Server 15
- Operating System Supported: Windows Server 2019
- Operating System Supported: Windows Server 2019 Datacenter
- Operating System Supported: Windows Server 2019 Standard
- Operating System: No
- Power Description
- Number of Power Supplies Supported: 1
- Number of Power Supplies Installed: 1
- Plug/Connector Type: C13/C14
- Maximum Power Supply Wattage: 500 W
- Hot Swappable Power Supply: Yes
- Physical Characteristics
- Form Factor: Rack
- Rack Height: 1U
- Height: 1.7"
- Width: 17.1"
- Depth: 15"
- Weight (Approximate): 20.86 lb
- Miscellaneous
- Energy Star: Yes
- Security Features
- UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-2 validation
- Common Criteria certification
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- iLO Security Modes including a New iLO Advanced Premium Security License
- Granular control over iLO interfaces
- Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
- Tamper-free updates - components digitally signed and verified
- Secure Recovery - recover critical firmware to known good state on detection of compromised FW
- Ability to rollback firmware
- Secure erase of NAND
- TPM (Trusted Platform Module) 2.0 Gen10
- Bezel Locking Kit
- Intel Software Guard Extensions (Intel® SGX)
